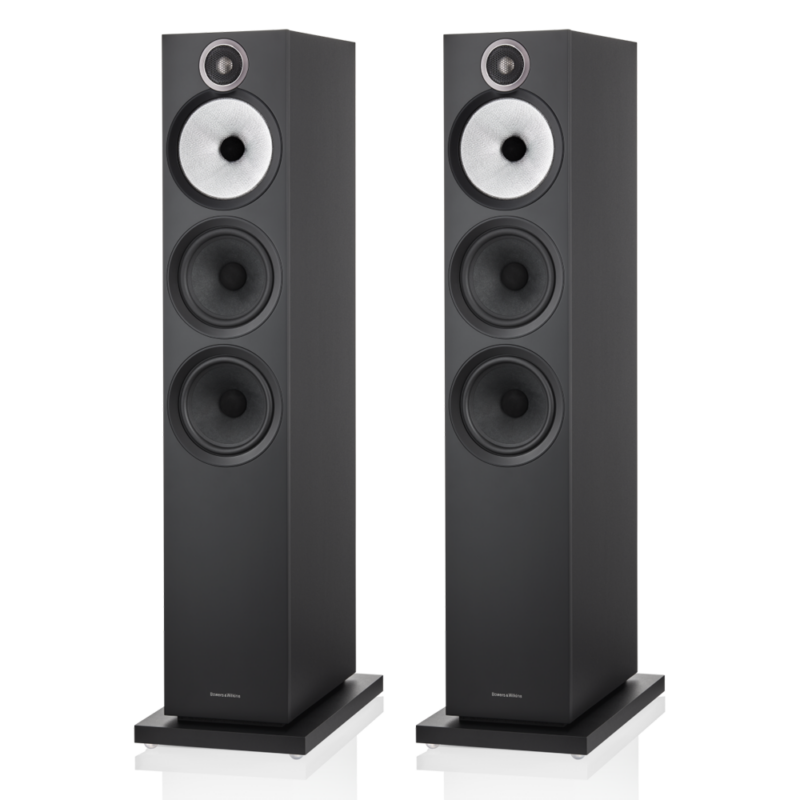

Bowers & Wilkins 603 S3 Home Theatre 5.1 Speaker Package

• Net weight4.65kg (10.3 lb)
• Dimensions

Height: 300 mm (11.8 in) cabinet only
Width: 165 mm (6.5 in) cabinet only
Depth: 207 mm (8.2 in) cabinet only
235 mm (9.3 in) including grille and terminals

• Drive units1x ø25mm (1 in) Titanium Dome high-frequency
  1x ø130mm (5 in) Continuum cone bass / midrange
• Frequency range-6dB 40Hz – 33kHz
• Harmonic distortion

2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz – 22kHz
<0.5% 500Hz – 10kHz

• Nominal impedance

8Ω (minimum 3.0Ω)

• Recommended amplifier power

30W – 100W into 8Ω on unclipped programme

• Technical features

Decoupled Double Dome Titanium tweeter
Continuum™ cone bass / midrange
Flowport™

Description

• 2-way vented-box system
• Max recommended cable impedance0.1Ω
• Frequency response (+/-3dB from reference axis)52Hz – 28kHz ±3dB
• Sensitivity (on axis at 2.83Vrms at 1m)84dB

• Cabinet finishes

Black
White
Oak

• Grille finishes

Black (Black)

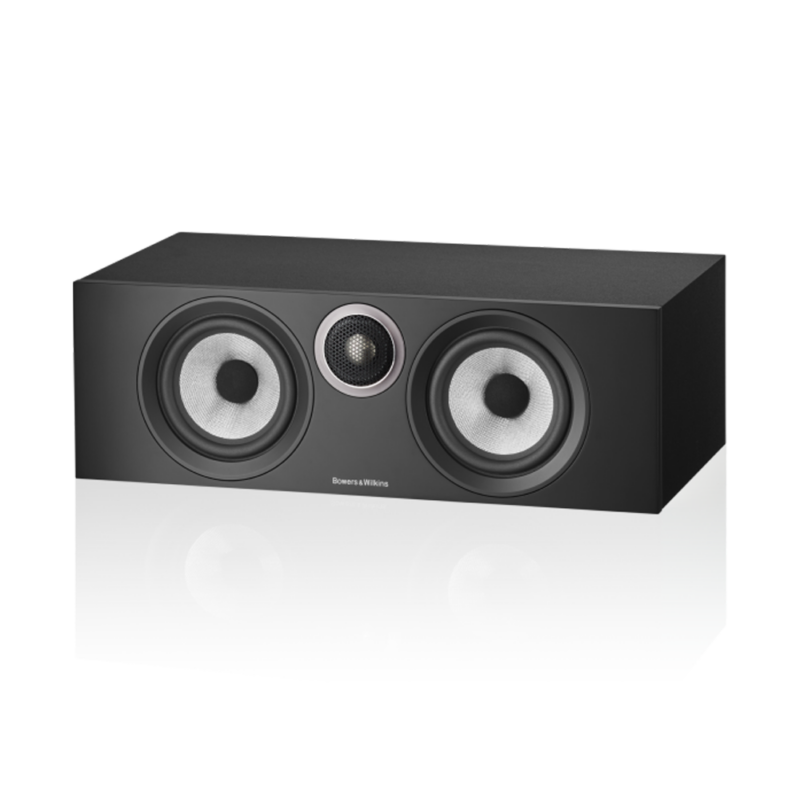

Bowers & Wilkins HTM6 S3 Center Speaker (each)

Layered, beautiful details
The new HTM6 S3 introduces our all-new Titanium Dome tweeter, which combines exceptional resolution and insight with smooth, refined high-frequency reproduction. The result? An accurate and immersive insight into your favorite music.

Truly amazing sound
HTM6 S3 introduces our new and even more acoustically transparent tweeter grille mesh, first developed for our revered Signature models. Alongside the new Titanium Dome tweeter, the resolution and realism is exceptional.

Precision and transparency
Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. With HTM6 S3, experience a more open, neutral performance that delivers voices and instruments with precision and transparency.

Upgraded speaker terminals
Derived from those recently introduced in our 700 Series range, the speaker terminals on the new HTM6 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.

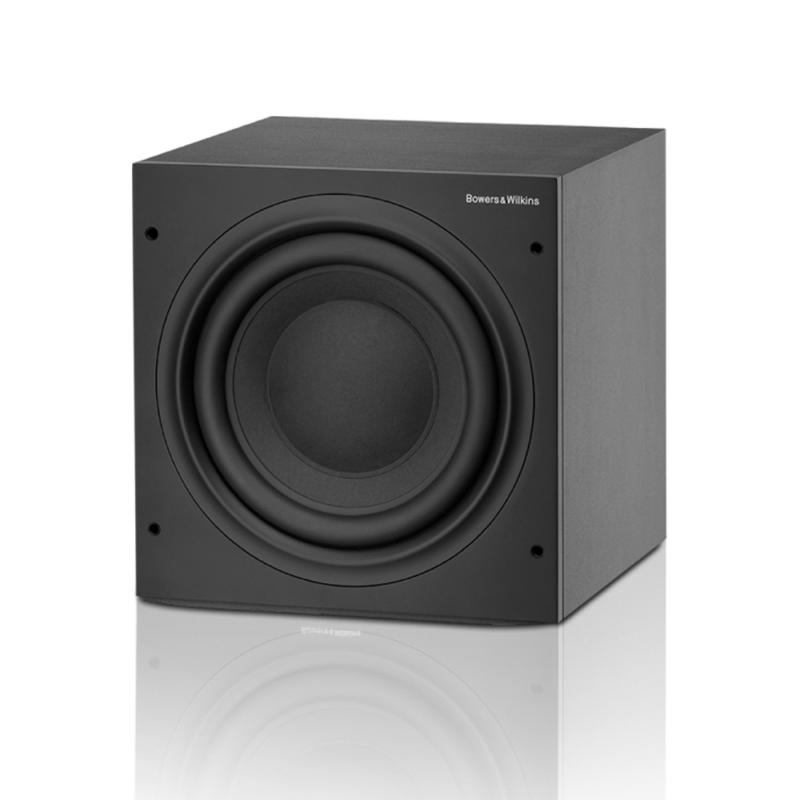

Bowers & Wilkins ASW 610 Active Subwoofer 10 200W (Each)

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet. Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.

TECHNICAL SPECIFICATIONS

Features

• Input level line in
• Input level speaker in
• Low-pass filter bypass
• Bass extension
• Bass roll-off alignment
• Auto sense on / standby
• Phase switch

Description – Active closed-box subwoofer system

Drive unit – ø250mm 10 in paper / Aramid fiber cone long-throw

Frequency range – -6dB at 20Hz and 25 / 140Hz adjustable EQ at A

Frequency response – ±3dB 27Hz – 40 / 140Hz adjustable EQ at A

Bass extension

• -6dB at 20Hz position A
• -6dB at 25Hz position B
• -6dB at 30Hz position C

Power output – 200W

Rated power consumption – 40W / 0.5W standby

Input impedance – 33kΩ

Signal / noise – >90dB

Inputs

• Line in RCA Phono
• Speaker in Binding post
• 12v trigger 3.5mm jack
• Low-pass filter
• Active 4th-order, variable cut-off frequency

Dimensions

• Height: 310mm 12.2 in not including feet or spikes
• 322mm 12.7in including feet
• 338mm 13.3in including spikes
• Width: 310mm 12.2 in
• Depth: 347mm 13.66in not including grilles
• 375mm 14.8 in including grilles and controls

Net weight – 12.5kg 27.6 lb
